Rakonheli Advanced Upgrade Kit for the Blade 230 S/V2
Overview:
- The CNC Blade 230S/V2 Performance package is a high-quality upgrade kit designed to enhance the rigidity, stability, durability, and overall performance of the Blade 230S or 230S V2 helicopter. It is manufactured using CNC milling and lathe machines, ensuring precise tolerances and optimal performance.
- The materials used in this performance package include aluminum alloy (specifically Aluminum 6061-T6), carbon fiber (3K pure carbon fiber and aluminum/carbon fiber), TPU (Thermoplastic Polyurethane), Delrin/POM (Polyoxymethylene) and stainless steel. These materials are carefully selected for their strength, lightweight properties, and durability, resulting in optimized weight and improved performance.
- The hardware components are of high quality, including bearings, stainless steel screws, and washers, ensuring reliable and smooth operation. These components are assembled meticulously to provide a stable and precise control experience.
- The main features of the CNC Blade 230S/V2 Performance package are as follows:
1. Head and Tail Design: The head and tail are fully assembled using aluminum components, providing high precision control and improved stability.
2. Swashplate Tilting Angle: The swashplate is designed to have a tilting angle ability of up to 25 degrees, allowing for enhanced maneuverability and agility.
3. Frame Design: The frame features a main motor mount that can adjust the gear mesh and is equipped with three bearing blocks to support the main gear, shaft, and motor. This design ensures smooth power transmission and reduces vibrations.
4. Tail Boom Support: The tail boom support is designed to increase stiffness in the tail system, resulting in improved stability and control during flight.

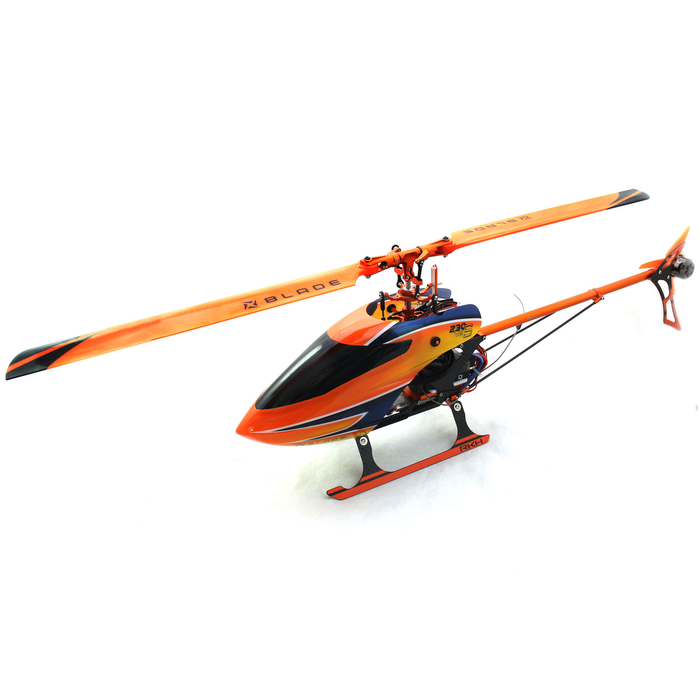

When comparing the weight of the helicopter with and without the battery, the full stock plastic setup weighs approximately 297.98 grams (10.51 ounces), while the full orange upgrade kit weighs around 312.40 grams (11.02 ounces). This weight comparison indicates a slight increase in weight with the upgrade kit but offers improved performance and durability.

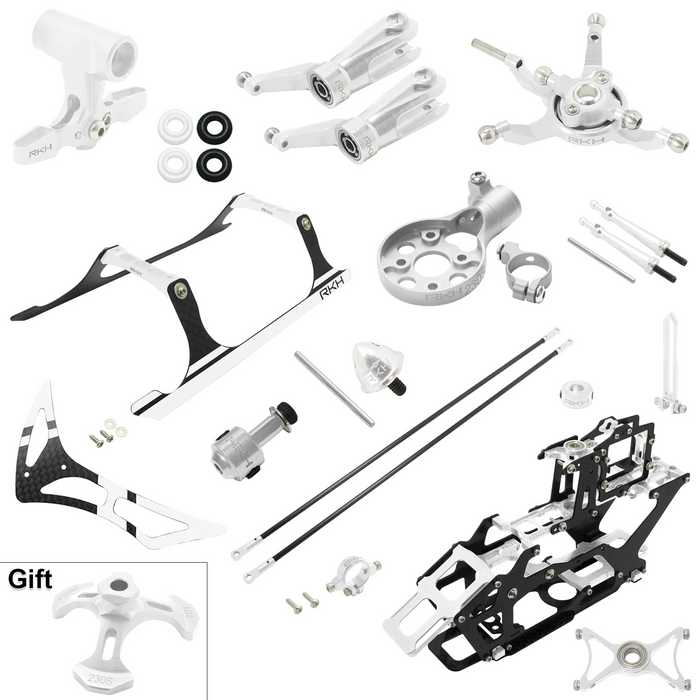

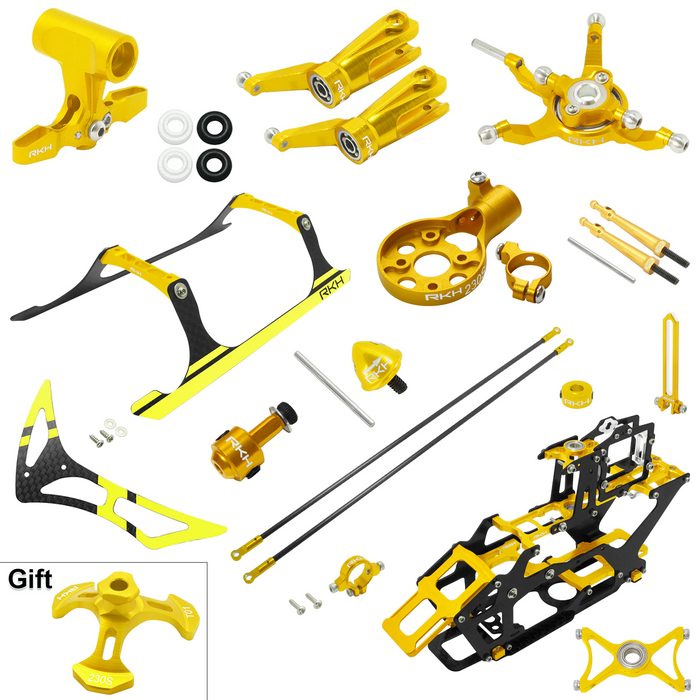

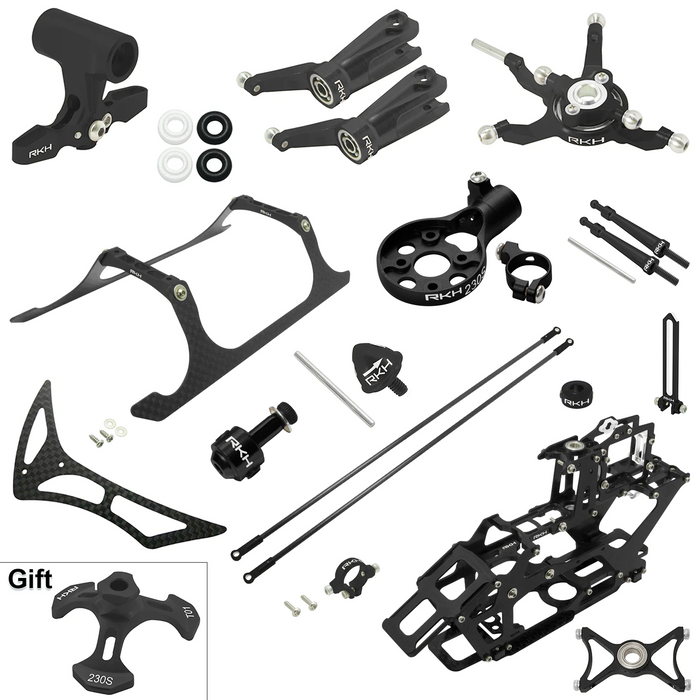

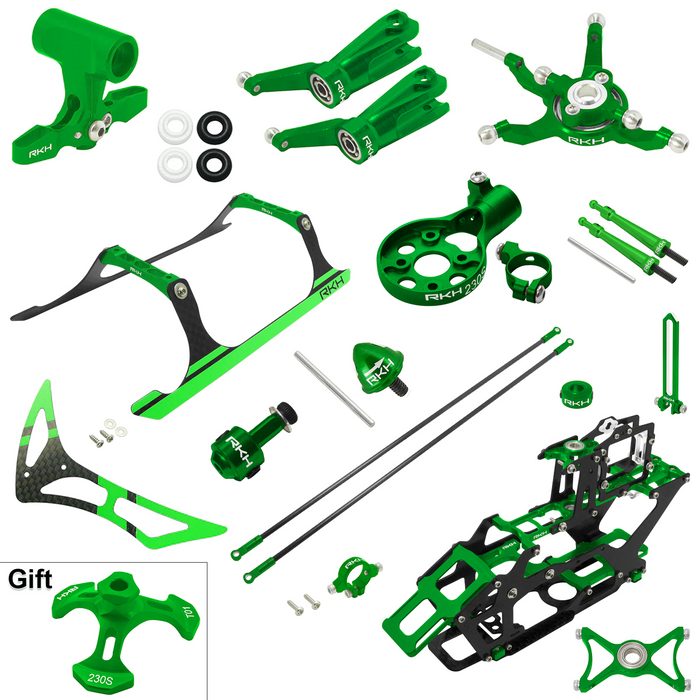

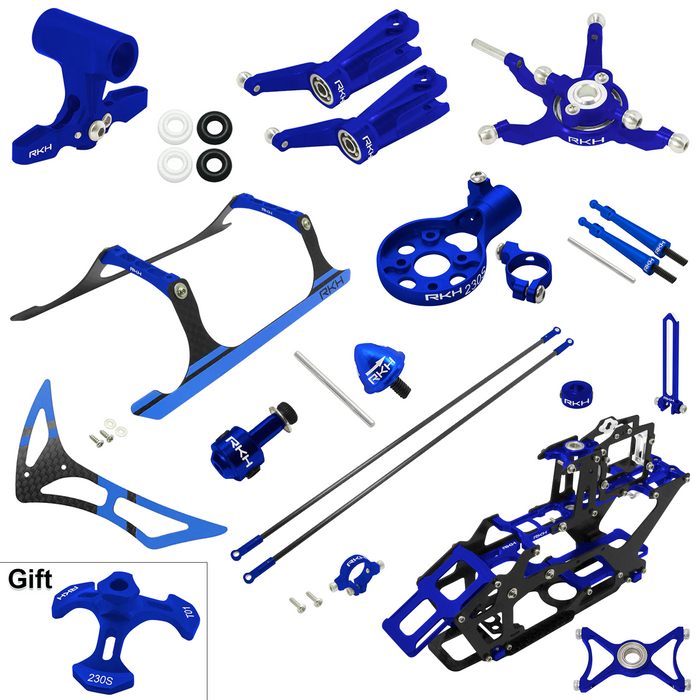

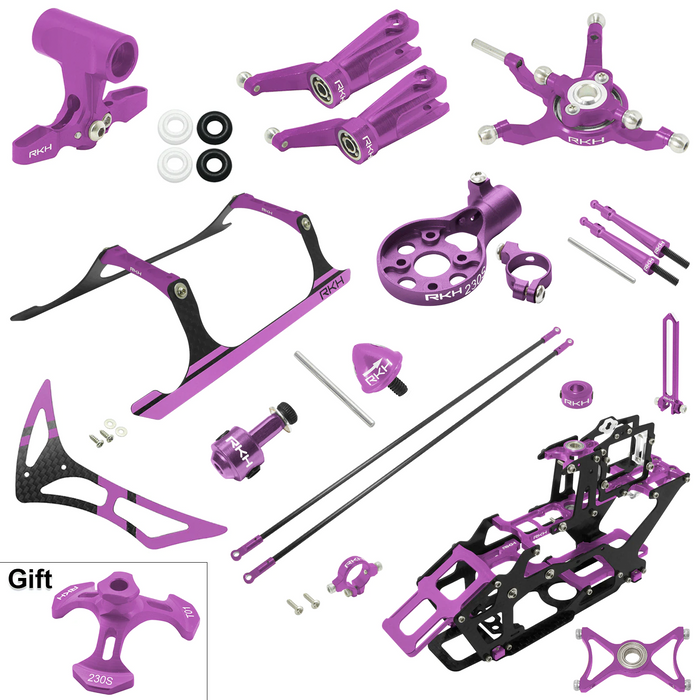

Package Included:
1 x Rakonheli CNC Aluminum Main Rotor Hub Set (SKU: 230S010), $24.99
1 x Rakonheli CNC Aluminum Main Blade Grip Set (SKU: 230S030), $27.99
1 x Rakonheli CNC Aluminum Swashplate Set (SKU: 230S178), $29.99
1 x Rakonheli CNC Delrin Dampener Set (SKU: 230S009), $4.99
1 x Rakonheli CNC Aluminum Main Shaft Collar (SKU: 230S407), $3.99
1 x Rakonheli CNC Aluminum Third Bearing Block Set (SKU: 230S423), $8.99
1 x Rakonheli CNC Aluminum AR Guide Set (SKU: 230S438), $7.99
1 x Rakonheli CNC Aluminum Carbon Main Frame Set (SKU: 230S452), $69.99
1 x Rakonheli CNC Aluminum Carbon Landing Gear Set (SKU: 230S721), $24.99
1 x Rakonheli CNC Aluminum Canopy Mount Set (SKU: 230S799), $8.99
1 x Rakonheli CNC Aluminum Tail Boom Support Set (SKU: 230S812), $17.99
1 x Rakonheli CNC 3K Pure Carbon Fiber Tail Fin Set (SKU: 230S854), $8.99
1 x Rakonheli CNC Aluminum Tail Motor Mount Set (SKU: 230S860), $24.99
1 x Rakonheli CNC Aluminum Tail Propeller Adapter (SKU: 200SRX956), $3.99
1 x Rakonheli CNC Aluminum Tail Rotor Hub (SKU: 200SRX957), $5.99
1 x [Gift] Rakonheli CNC Aluminum Swash Leveler (SKU: 230ST01), $12.99
* Note: Orange Boom is not available.
