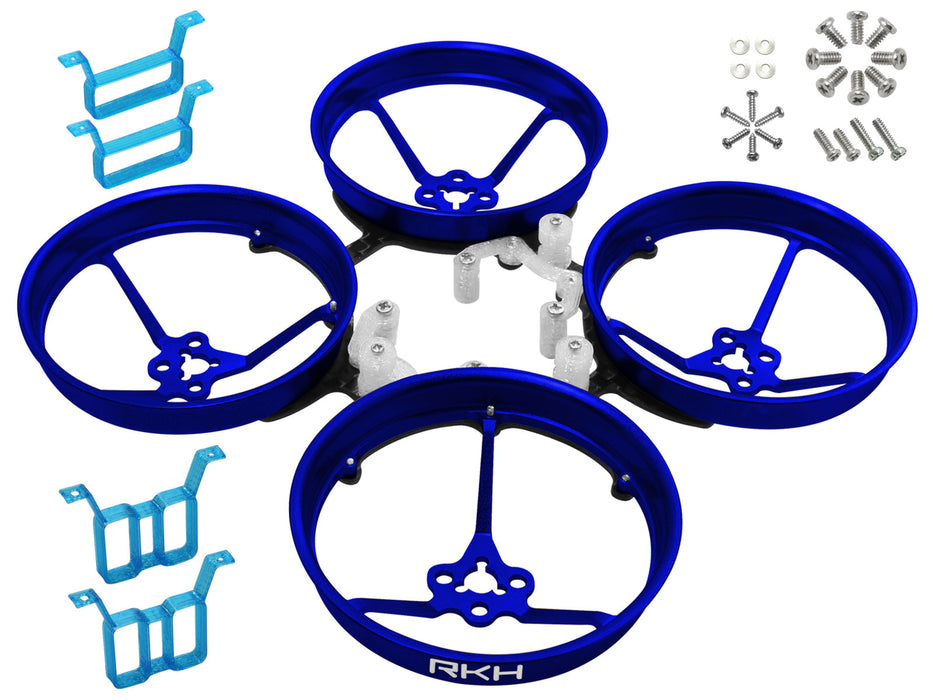

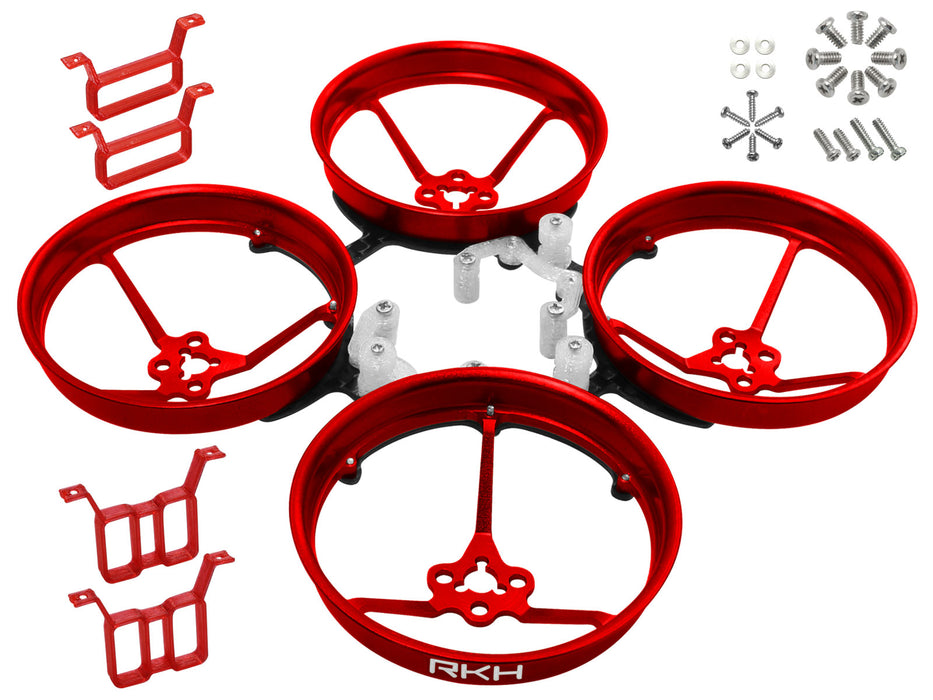

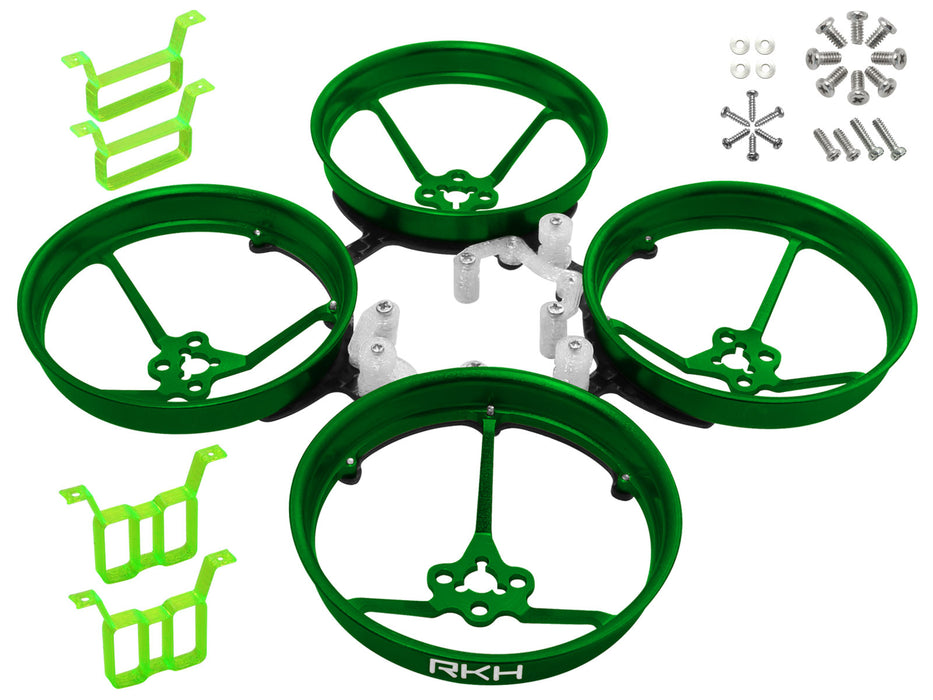

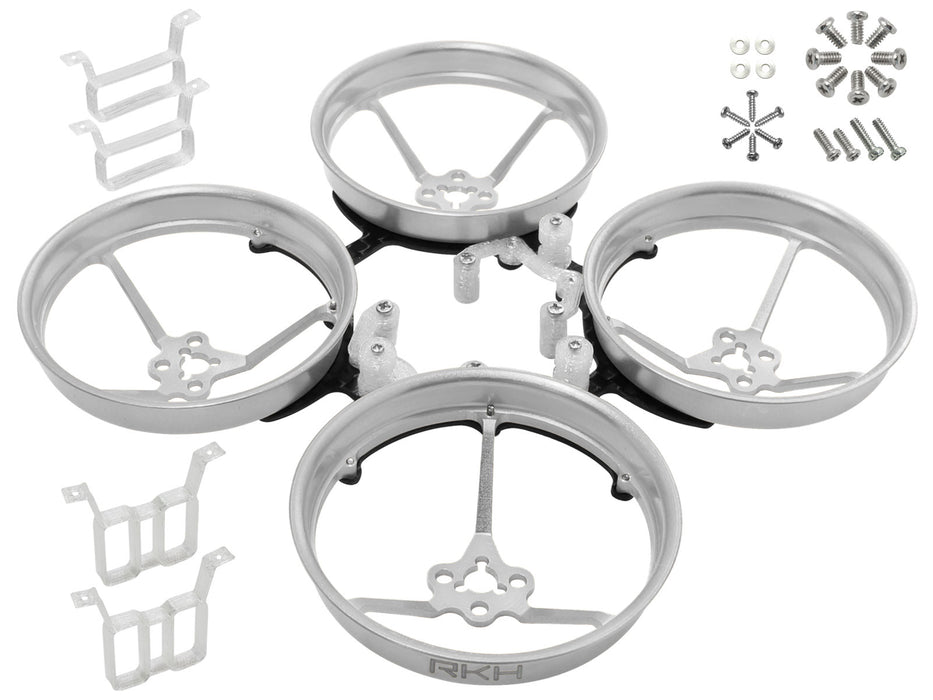

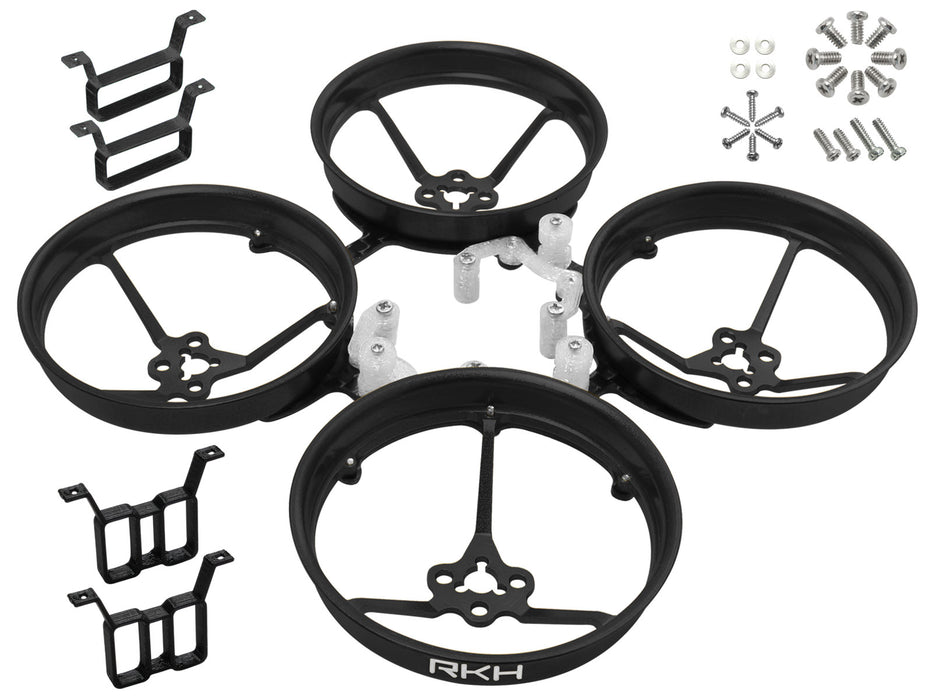

Rakonheli 1S, 2S AL Carbon 76mm Brushless Whoop Kit (for 0603, 0703, 1103 Motor)

1. Description:
Designed for Fans of the Blade Inductrix Series and Tiny Whoop want to setup a 1S or 2S Micro Brushless Motor Kit.

- Material: Aluminum alloy, TPU, 3K Pure Carbon Fiber and Stainless Steel Screws.

- Main size: 76mm Frame, 40mm Propeller Duct, 1.0mm Thick Carbon Frame.

- FC size: 16x16mm Square.

- ESC size: 4in1 16x16mm Square.

- Motor mount: 0603, 0703, 1103 1-2S Racing Brushless Motor.

- Weight: 10.10(g) = 0.36(oz).

2. Package Included:
1 x Rakonheli AL Carbon 76mm Brushless Whoop Kit (included hardware).

2 x Rakonheli TPU 17x6.5mm Battery Mount (1S) (SKU: 3DP016).

2 x Rakonheli TPU Battery Mount (2S) (SKU: 3DP021).

3. Recommended Setup:
Flight Controller:

1 x FuriousFPV Racewhoop Smallest Brushless FC (SKU: FPV-0178-S)

ESC:

1 x Fishpepper 5A BB2 48MHz DSHOT600 1-2S 4in1 ESC (SKU: FPV-0252-S)

Receiver (one of these):

1 x 0.8g 2.4G DSM2 DSMX Pro Receiver for JR SPEKTRUM Transmitter (SKU: R0.8DSM2X)

1 x 0.9g 8CH Micro Receiver with SBUS PPM Output Binding Button for FRSKY Transmitter (SKU: R0.9FRSKY)

Motors:

1S: 4 x 0603 or 0703 or 1103 (12000KV-15000KV) 1-2S Racing Brushless Motor

2S: 4 x GriffonFPV D1103 8000KV 1-3S Racing Brushless Motor (1.5mm Shaft) (SKU: D1103-8000KV)

Propellers:

1 x Rakonheli 40mm 3 Blade Transparent Propeller (2CW+2CCW; 1.5mm Shaft) (SKU: 3PROP4015-T)

FPV Camera (one of these):

1 x Blade Helis Inductrix FPV+ 25mW Camera (SKU: BLH9606)

1 x Blade Helis Inductrix Pro FPV FX805 25mW Camera (SKU: BLH8517)

FPV Camera Mount:

1 x Rakonheli TPU Camera Mount-20 Degrees (for BLH9606) (SKU: 3DP027)

1 x Rakonheli Clear Canopy (for 14.5x12mm FPV Camera) (SKU: C02-H01)

Battery: 1S 500mAh or Twin 1S HV 255mAh for 2S.
